In today’s advertising landscape, Digital Out-of-Home (DOOH) stands as the most dynamic and high-performing frontier of visual marketing. Unlike traditional static billboards, a next-generation LED wall turns any surface into a powerful engagement tool, capable of capturing attention in high-traffic environments and delivering messages with unprecedented visual impact. The benefits of this technology are tangible, measurable, and strategically relevant:
- Content flexibility: campaigns can be scheduled by time slots, maximizing advertising ROI
- Extreme brightness: perfect visibility in any lighting condition, from direct sunlight to evening hours
- Superior color quality: accurate brand representation and a fully immersive viewing experience
- Organic engagement: the ability to naturally attract attention and influence purchasing decisions
In shopping malls, where thousands of people pass through every day, a large LED advertising screen becomes an unavoidable focal point, transforming shared spaces into true communication arenas. Its ability to attract, retain attention, and influence consumer behavior makes DOOH one of the most strategic investments for retailers, brands, and commercial property operators.
Technical details of the installation

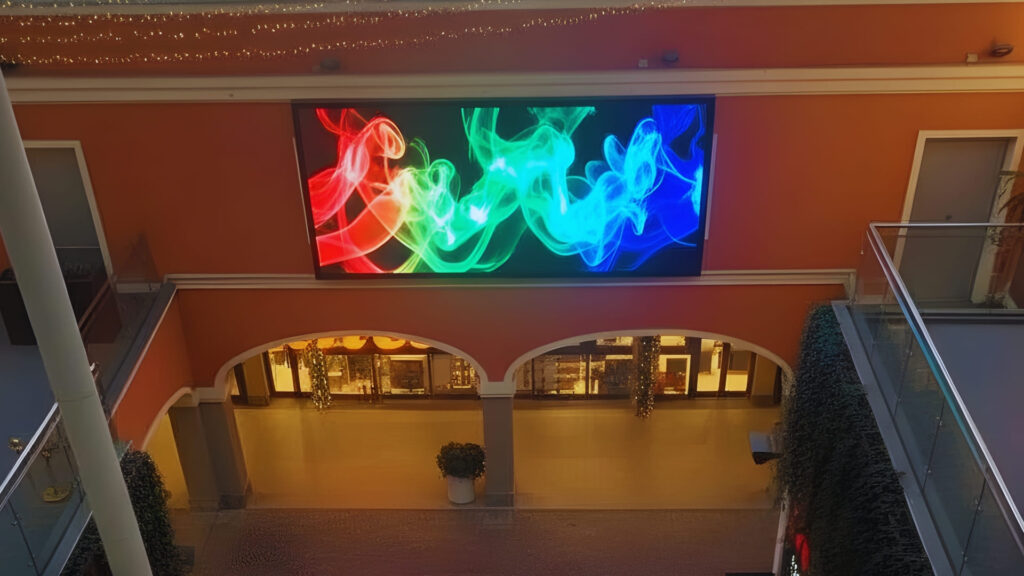

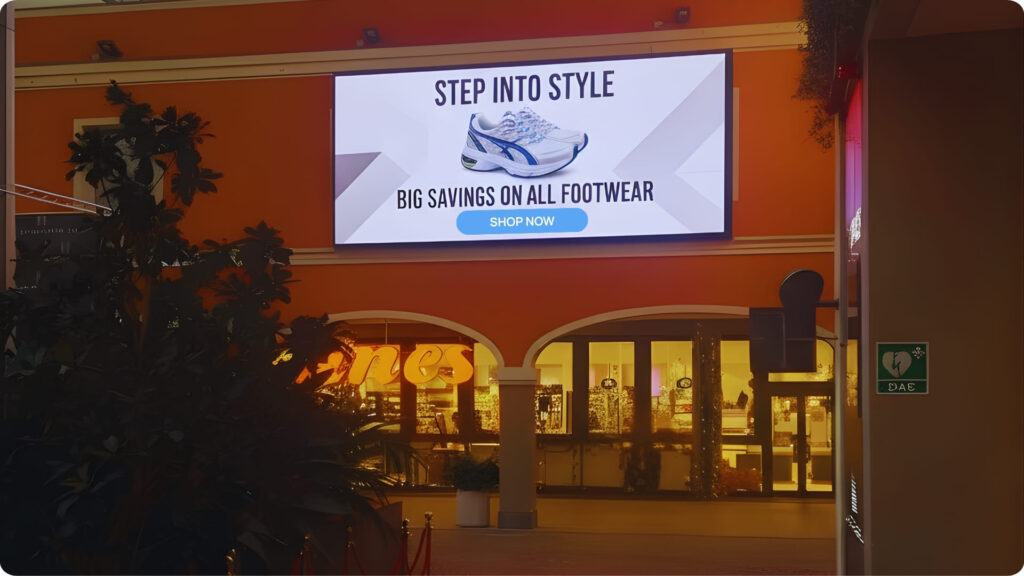

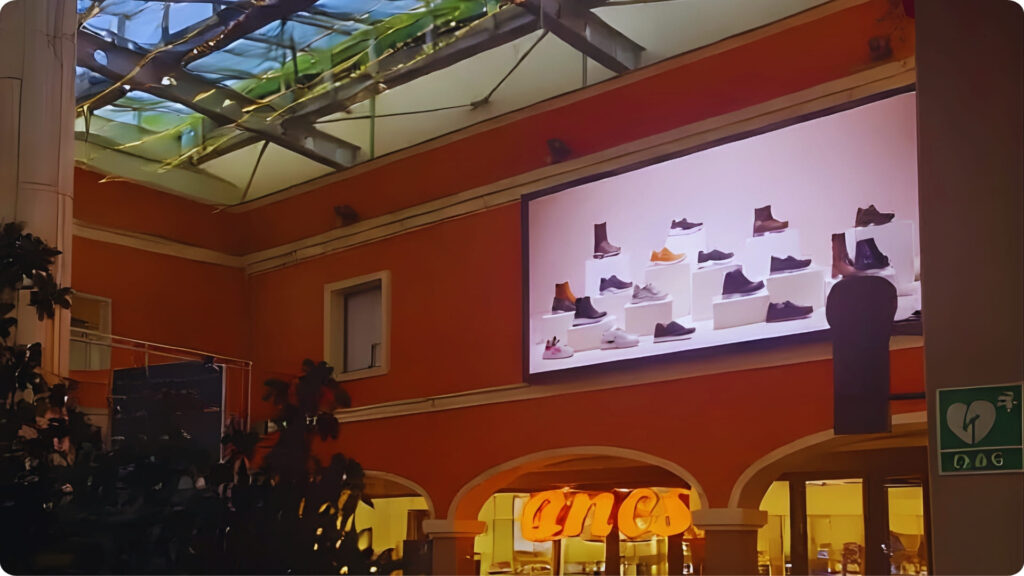

The project delivered at “La Galleria” shopping mall in Parma for our partner Pikasso is a clear example of how advanced technology and installation expertise can converge to create a best-in-class DOOH solution. At the heart of the installation is a SIGNUM-LS4.4 LED display: a large-scale technological statement measuring 6,720 × 2,880 mm, with a total surface area of 19.35 square meters of pure visual power. Its modular structure ensures optimal space coverage while offering outstanding flexibility for maintenance operations.
Each module, measuring 960 × 960 × 91 mm, has been engineered with a focus on structural lightness. The total system weight is 523 kg, equivalent to just 27 kg/m², enabling installation even in architecturally complex environments. Dual access, both front and rear, allows for fast, non-invasive maintenance, minimizing downtime and ensuring continuous operation. From a performance standpoint, the system is driven by top-tier technical specifications:
- 4.4 mm pixel pitch: graphic resolution of 1,512 × 648 pixels, with a density of 50,626 pixels/m²
- 5,500 nits brightness: excellent visibility even in direct sunlight
- SMD 1921 RGB LEDs: vivid, accurate color reproduction
- 3,840 Hz refresh rate: complete elimination of flicker
- Wide viewing angle: 150° horizontal / 110° vertical for maximum coverage
- 100,000-hour lifespan: over 11 years of continuous operation
- IP66 certification: full protection against rain, dust, and environmental agents
- Operating temperature: from –20°C to +55°C
Energy efficiency
Energy efficiency has been carefully optimized. While peak consumption reaches 12.39 kW, average operating consumption drops to just 4.14 kW, significantly reducing running costs without compromising performance. IP66 certification on both the front and rear confirms the robustness of the system, designed to withstand rain, dust, and extreme weather conditions.
The project extends well beyond the display itself, incorporating a fully integrated technological ecosystem. Control electronics manage content transmission and processing, while a UPS system ensures uninterrupted operation during power outages. An IP65-rated digital electrical cabinet, designed to handle up to 20 kW, guarantees safe power distribution, and a dedicated camera enables remote monitoring of the installation. Rear mounting structures and lateral protective covers complete a true turnkey solution, supported by professional mechanical design and certified structural calculations, essential elements for safety and regulatory compliance.

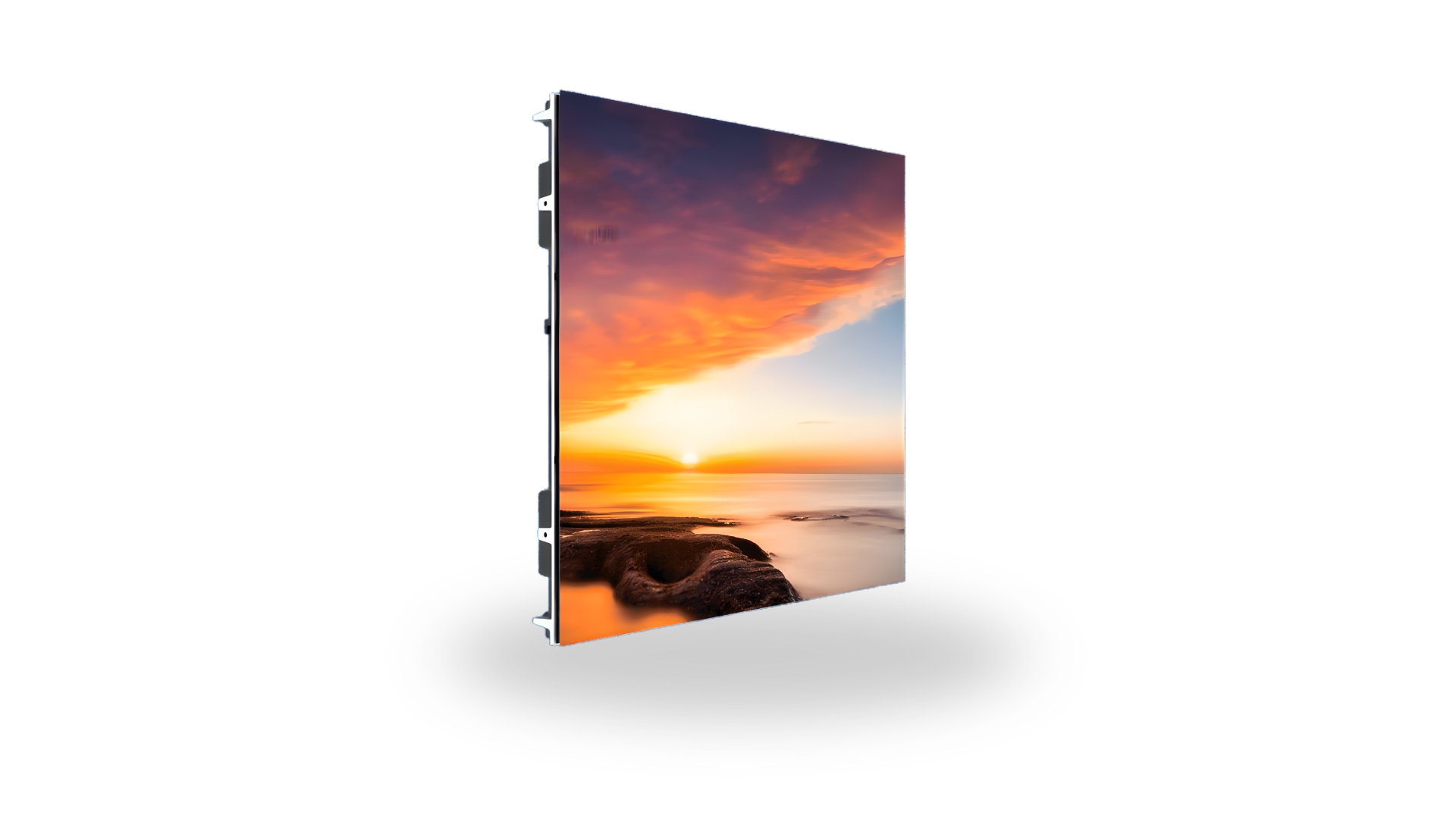

SIGNUM-LS: technological excellence redefining digital signage standards
SIGNUM-LS is not just an LED screen; it is a communication platform engineered to maximize the effectiveness of every piece of content through image quality that redefines industry benchmarks. The series stands out for its extreme brightness, ranging from 6,000 to 10,000 nits depending on configuration, placing it among the brightest solutions available on the market. This is not merely a technical specification, it is the key factor that guarantees optimal visibility in all ambient conditions, from direct sunlight to nighttime environments, ensuring maximum impact and audience attraction throughout the day.
Visual excellence is further reinforced by exceptional contrast ratios, reaching 5,500–10,000:1, and outstanding color depth enabled by 14-bit grayscale processing, capable of reproducing 16,384 levels per color. This level of precision translates into realistic images, smooth gradients, and faithful color reproduction, turning any advertising message into a memorable visual experience. The 3,840 Hz refresh rate completes the performance profile, eliminating visual artifacts and enabling smooth video capture without banding or flicker.
Optimized viewing angles and spatial coverage
One of the most strategic features of the SIGNUM-LS is its ultra-wide viewing angle: up to 160° horizontally, with an optimized vertical range of +50° to –60° (150° H / 110° V in technical specifications). This wide coverage transforms the screen into an effective focal point from multiple viewpoints, maximizing advertising value in high-footfall environments such as shopping malls, transport hubs, and public squares. Greater visibility from multiple angles means more impressions, broader reach, and ultimately a higher return on investment for advertisers.
Reliability and durability in all conditions
The robustness of the SIGNUM-LS is certified by its IP66 protection, ensuring complete waterproofing on both the front and rear. The fully sealed design protects electronic components from heavy rain, dust, humidity, and even extreme weather events. Its ability to operate within a temperature range of –20°C to +55°C guarantees uninterrupted performance in any climate, from harsh winter conditions to hot Mediterranean summers. This is not just about durability, it is about operational continuity, giving operators peace of mind and ensuring constant advertising presence.
Structural design and smart engineering

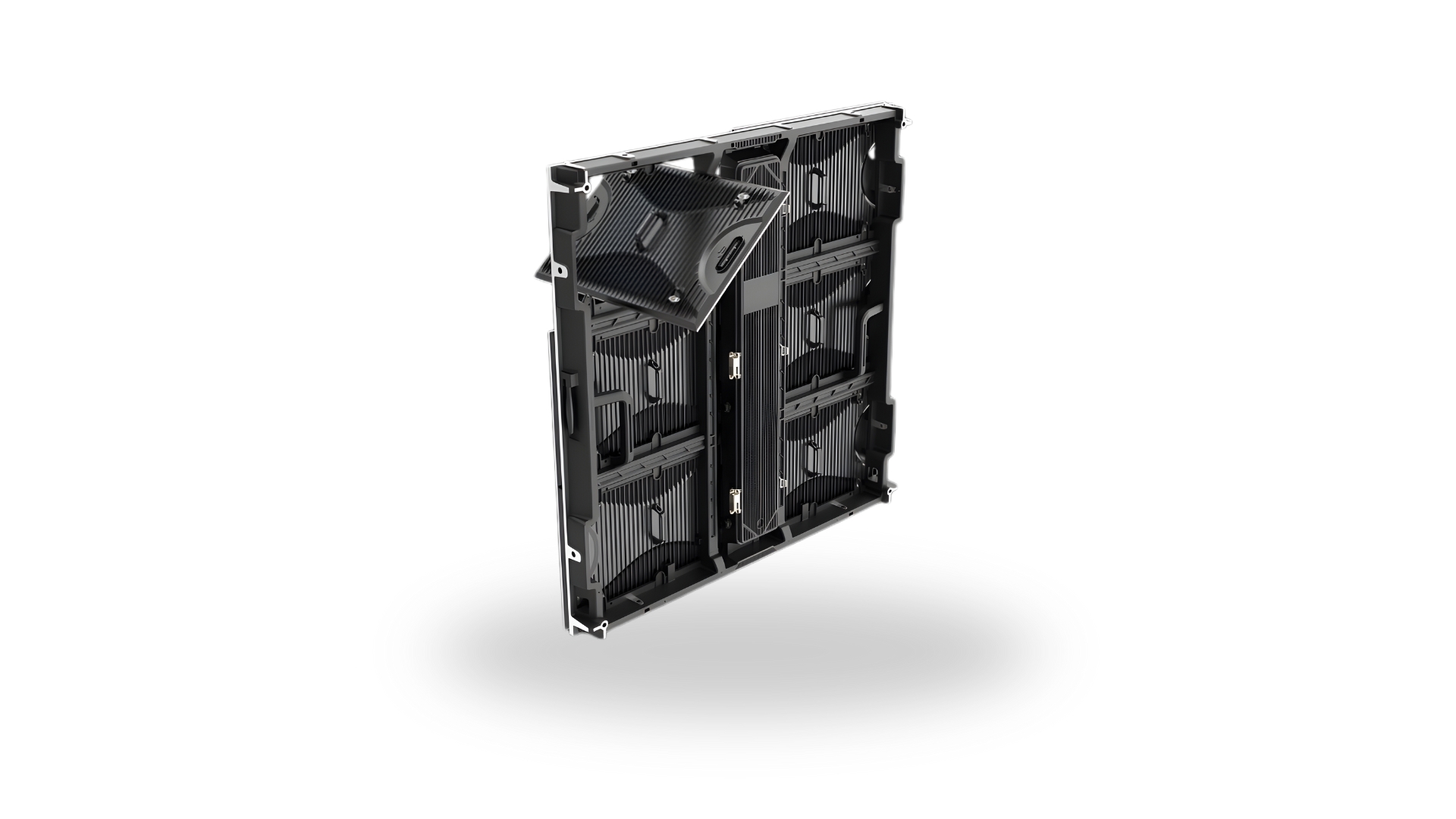

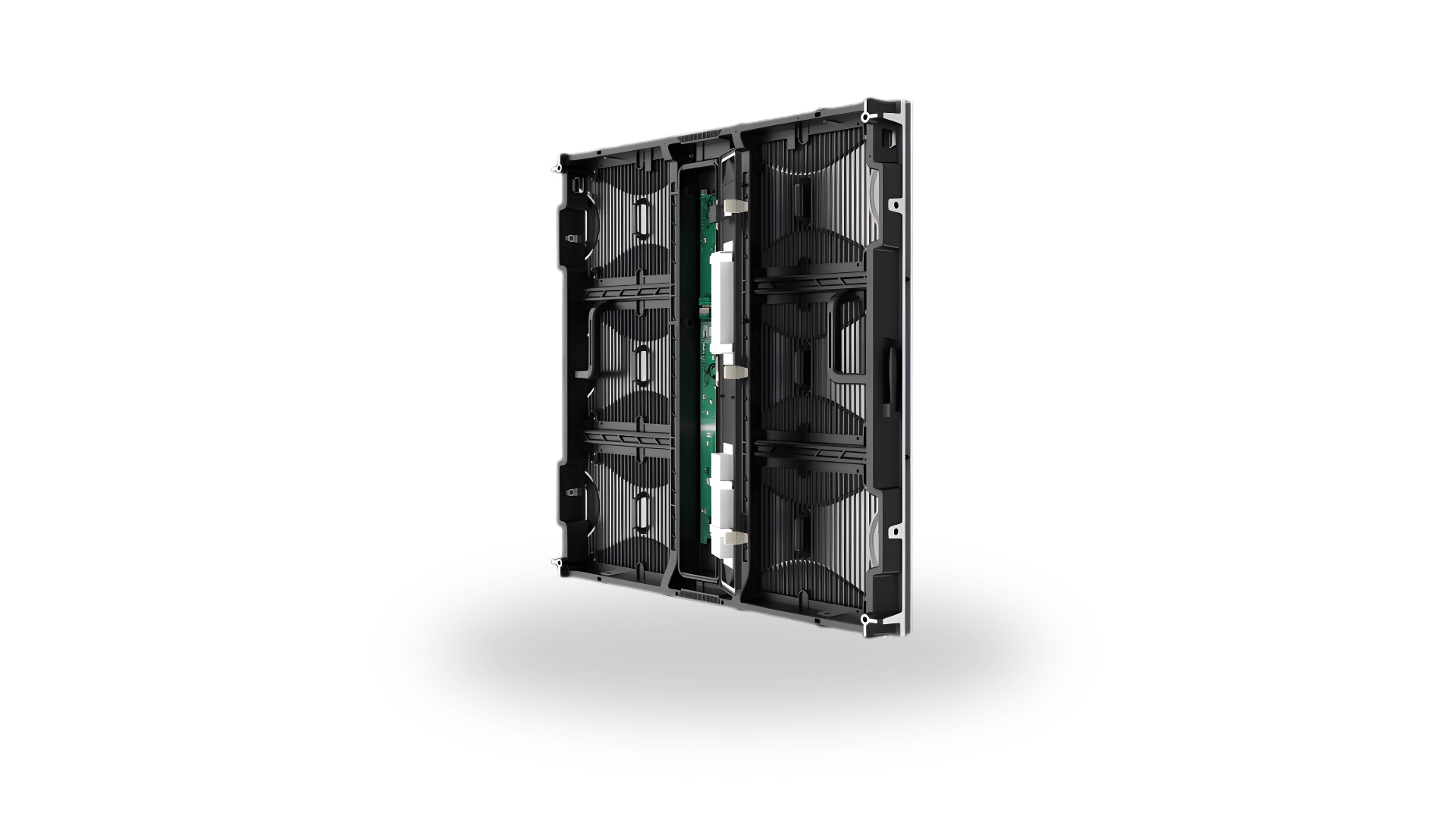

The die-cast aluminum frame achieves the ideal balance between lightness and structural strength. With a weight of ≤25 kg per 960 × 960 mm panel and a thickness of just 91 mm (including the LED board), the SIGNUM-LS simplifies installation in complex architectural settings, reducing structural requirements and support costs. The refined rear housing, featuring integrated metal covers and optimized heat sinks, ensures efficient thermal dissipation through:
- Large air convection surface design
- Die-cast aluminum rear shell
- High-performance thermally conductive adhesives
- Multi-layer passive cooling system
Each module incorporates practical details that make a real difference in daily operations: ergonomic carrying handles, four locking mechanisms for stability and safety, and integrated fire-prevention systems. The seamless waterproof design eliminates structural weak points, ensuring long-term durability and consistently high performance.
Application versatility and available configurations
The SIGNUM-LS series addresses a wide range of use cases thanks to multiple pixel pitch options:
- 4.00 mm: ideal for close viewing and maximum detail
- 4.44 mm: perfect balance between resolution and coverage
- 6.67 mm: ideal for medium viewing distances
- 8 mm: cost-effective solution for large surfaces
- 10 mm: ideal for long-distance viewing
This range allows for precise optimization of visual definition relative to viewing distance, ensuring the best configuration for each specific environment. The ability to create right-angle or beveled corner solutions further expands creative possibilities, enabling installations that follow complex architectural profiles and make the most of available space.
Simplified maintenance: full accessibility
One of the most innovative aspects of the SIGNUM-LS is its dual-access maintenance system, designed to enable fast and efficient servicing from both the front and the rear. Front maintenance is carried out using a dedicated tool that unlocks the LED modules with a simple counterclockwise motion, allowing immediate removal and replacement. Power and data components can be accessed by loosening the retaining screws and opening the dedicated enclosures.
From the rear, professional module release provides equally straightforward access to the power supply, signal receiver, and hub, once the power has been disconnected and the rear locks opened. This dual-access approach is far from a minor detail: it significantly reduces downtime, lowers operating costs, and ensures the display remains active for as long as possible, maximizing return on investment for owners and uninterrupted visibility for advertisers.
Ideal applications: where SIGNUM-LS delivers its full potential
The features of SIGNUM-LS make it the ideal solution for a wide range of professional applications:
- Shopping malls: a central communication hub to attract visitors and amplify promotional campaigns
- Sports venues: crystal-clear visibility for scores, replays, and sponsored content
- Transport hubs: always-readable information and high-impact advertising for on-the-move audiences
- Public institutions: reliable communication for civic information and emergency messaging
- Events and concerts: temporary large-format screens with fast setup and dismantling
In summary, SIGNUM-LS represents the perfect convergence of superior visual performance, certified structural robustness, energy efficiency, and ease of management. It is the choice for those who accept no compromises and demand a communication tool that continues to perform at the highest level, year after year, in any operating condition.
