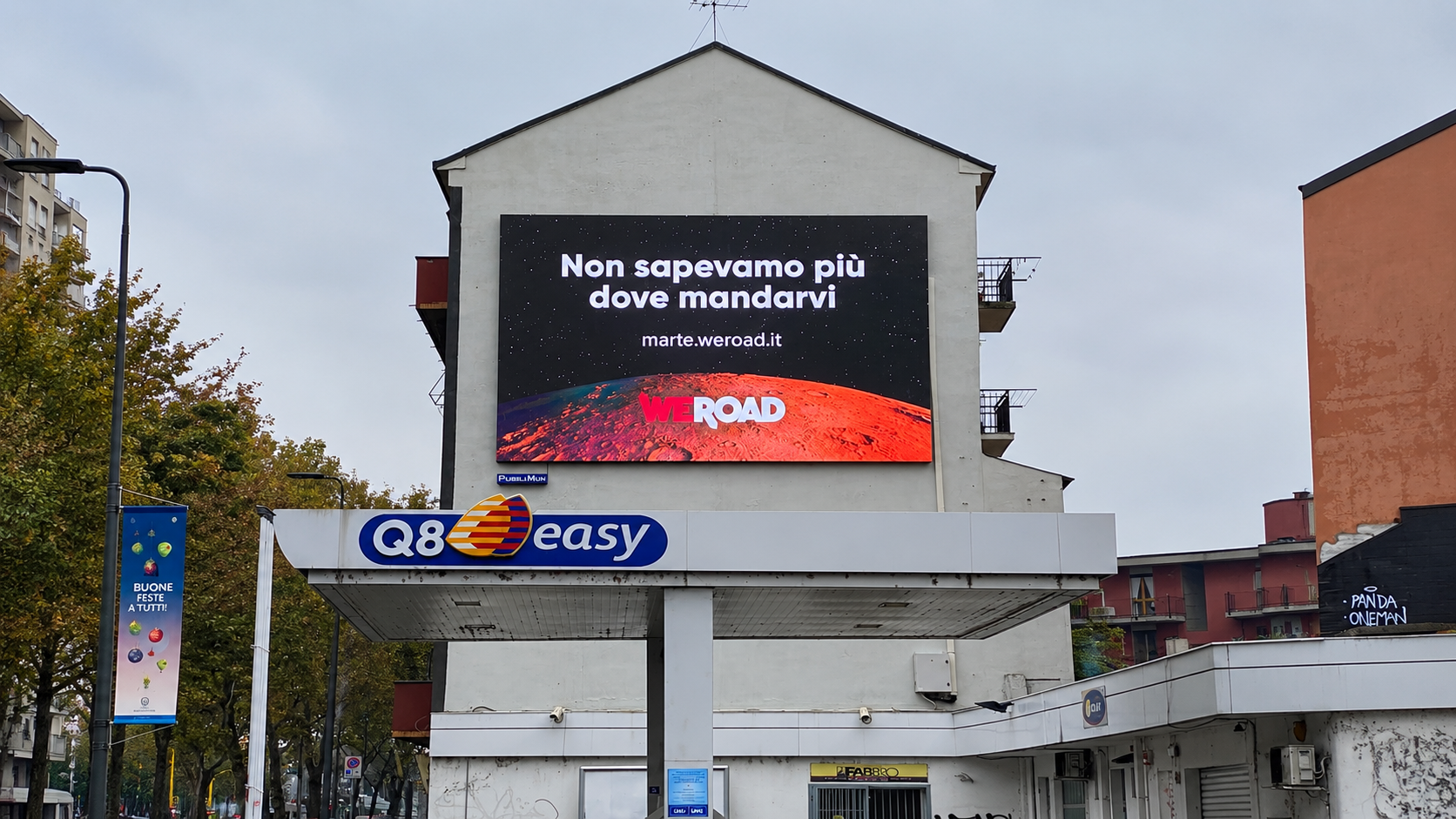

For Pubblinum, Macropix created a large-format outdoor LED installation in Viale Cassala, Milan, designed specifically for high-impact advertising communication.
The project features a Gold SMD LED screen with a 6.6 mm pixel pitch, measuring 9 × 6 metres, with a resolution of 1334 × 864 pixels and a brightness of 6000 nits. Installed directly on the building façade, the display was designed to ensure strong visual presence within the urban environment and excellent readability of advertising content from a distance.
The outdoor LED technology used for this project is specifically designed for permanent exterior installations. The Signum-FS range is developed for applications such as LED billboards, rooftop displays and wall-mounted advertising screens.
Advantages of the installation
In a busy urban advertising environment such as Viale Cassala, a large-format LED display turns a building façade into a highly visible digital communication platform.
The 9 × 6 metre size provides strong visual impact and makes advertising messages easy to see even from a considerable distance. Compared with traditional static billboards, digital LED technology also allows campaigns, videos and creative content to be updated quickly and frequently.
The 6000-nit brightness ensures excellent visibility during daylight hours and in bright outdoor conditions. The Signum-FS platform has been developed for high-brightness outdoor applications and is designed to maintain stable performance over extended periods of operation.
The main benefits for the client include:
- high visual impact thanks to the large display area;
- excellent long-distance visibility;
- fast and flexible content updates;
- greater advertising flexibility, with multiple campaigns on the same screen;
- strong visibility throughout the day;
- better use of the advertising space compared with a traditional static billboard.
Maintenance has also been considered as part of the product design. Signum-FS supports both front and rear service access, making maintenance operations easier and helping reduce long-term operating costs.
A refresh rate of up to 3840 Hz also supports smooth, stable reproduction of videos and dynamic advertising content.
Product used
This project uses a solution from the Macropix Signum-FS range, designed specifically for permanent outdoor LED installations.
The system is built with aluminium modules, helping improve heat dissipation and long-term reliability. Data and power components are protected and integrated into the structure, while the internal connections are designed to reduce visible cabling and simplify the overall construction.
Outdoor protection is a key feature. Signum-FS offers IP68 protection on the front and IP66 on the rear, with sealed aluminium construction and waterproof connectors.
Key features include:
- aluminium construction for efficient heat dissipation;
- strong protection against water, dust and weather;
- operation across a wide temperature range;
- front or rear maintenance access;
- energy-saving LED technology;
- modular design suitable for very large displays.
The brochure also highlights the use of common-cathode LED technology, designed to reduce energy consumption, together with additional energy-saving solutions that can lower power usage compared with conventional systems.
The result is a solution particularly suited to outdoor digital advertising: bright, robust, easy to maintain and designed for continuous operation in demanding urban environments.
